(Individual) Basic Article

Within this guide you are going to learn how a typical individual order for a basic hardware article (e.g. HDMI cable) works and expresses itself within the systems.

Overview

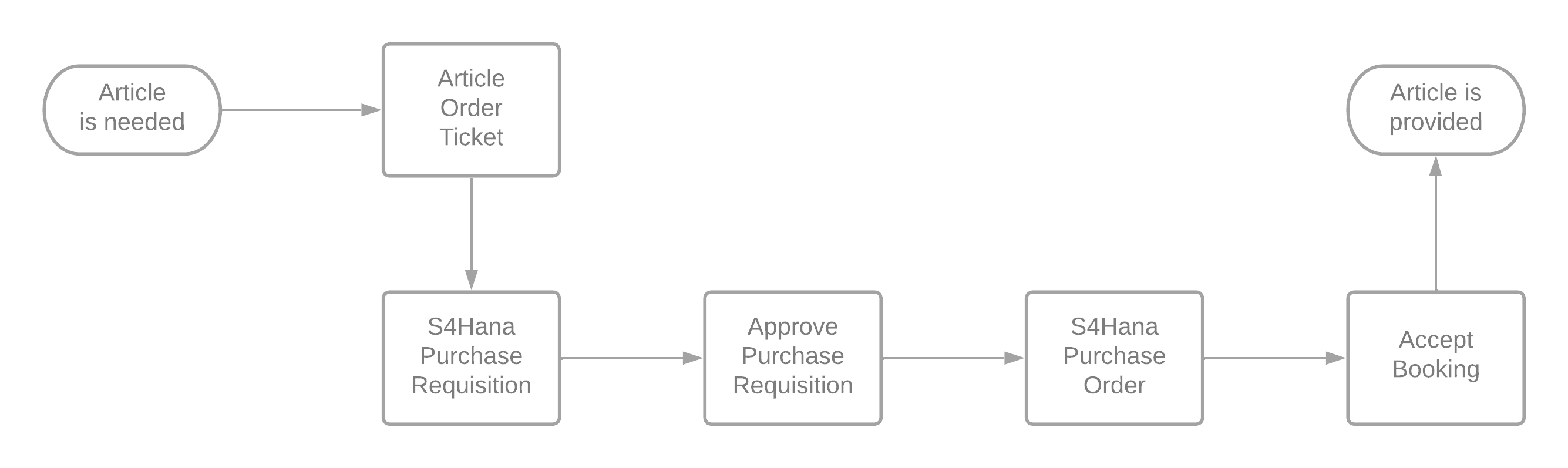

Common _ Basic Article.png

Walkthrough

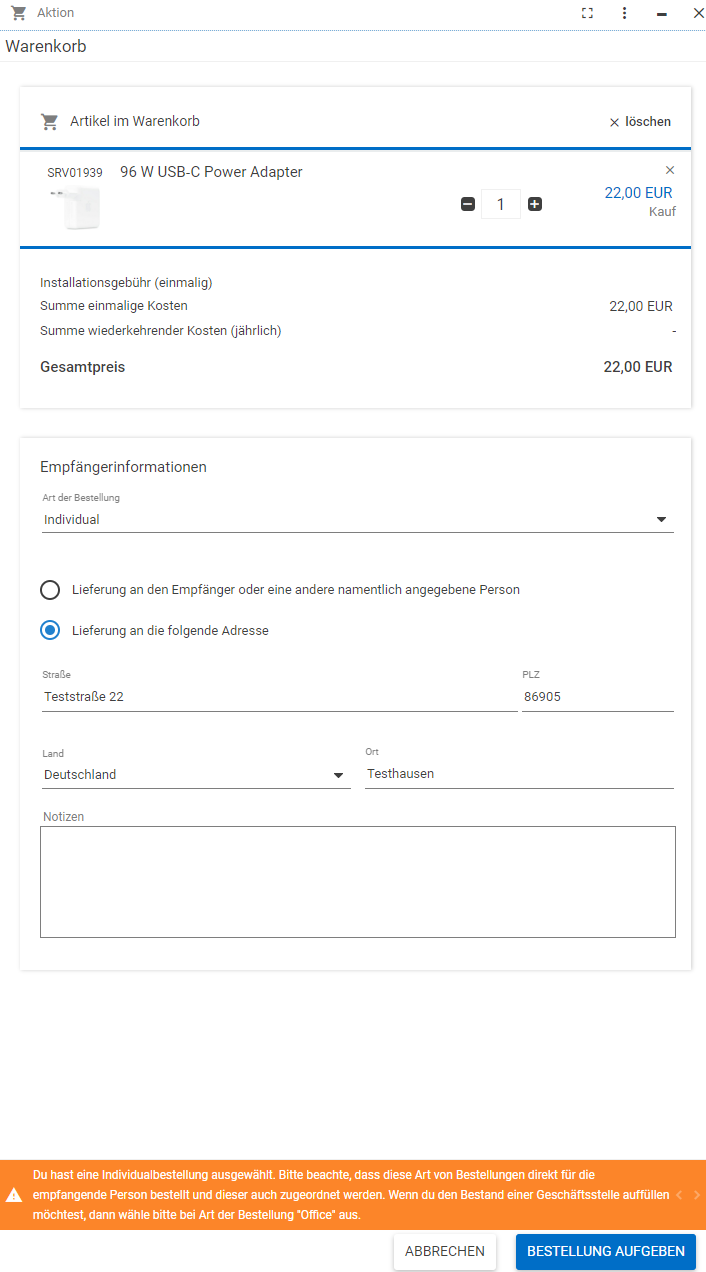

  1. Starting the Order: An employee initiates the order by selecting items available for delivery. In this example the employee is also responsible for an office making a notification appear, indicating that an individual order is being made.
  2. Order and Booking Approval: Once the order is created, it goes through an approval process. This is managed by a specific workflow named "Approval - RootITUp Order Analysis". When the items (bookings) in the order are approved, the next phase of processing them begins.
  3. Processing Steps:

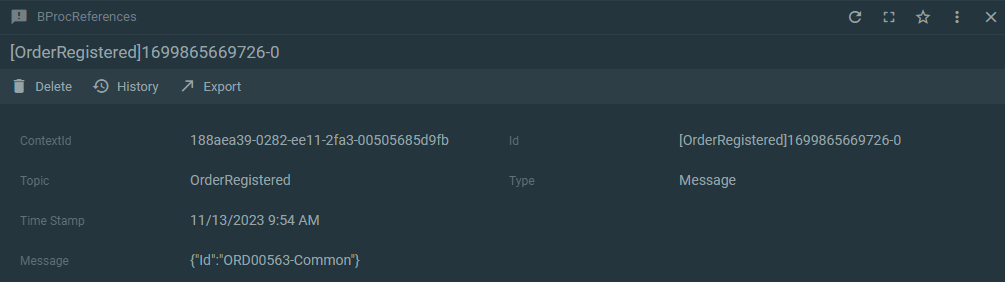

    1. The order is registered in the order management system, marked complete when an "OrderRegistered" event occurs.

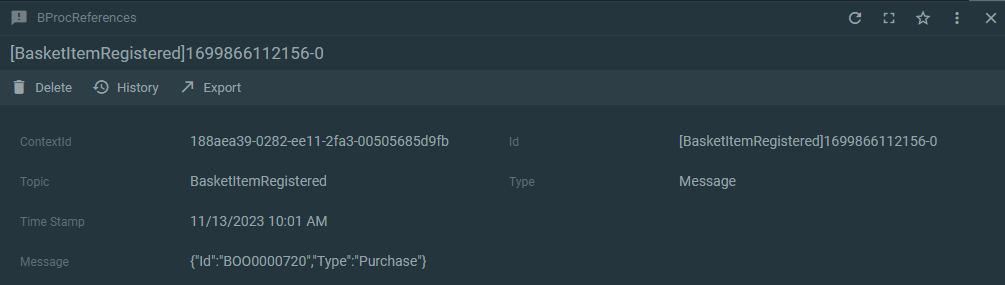

    2. Each item in the order is added to a purchasing basket in the system. This step is complete when a "BasketItemRegistered" event happens.

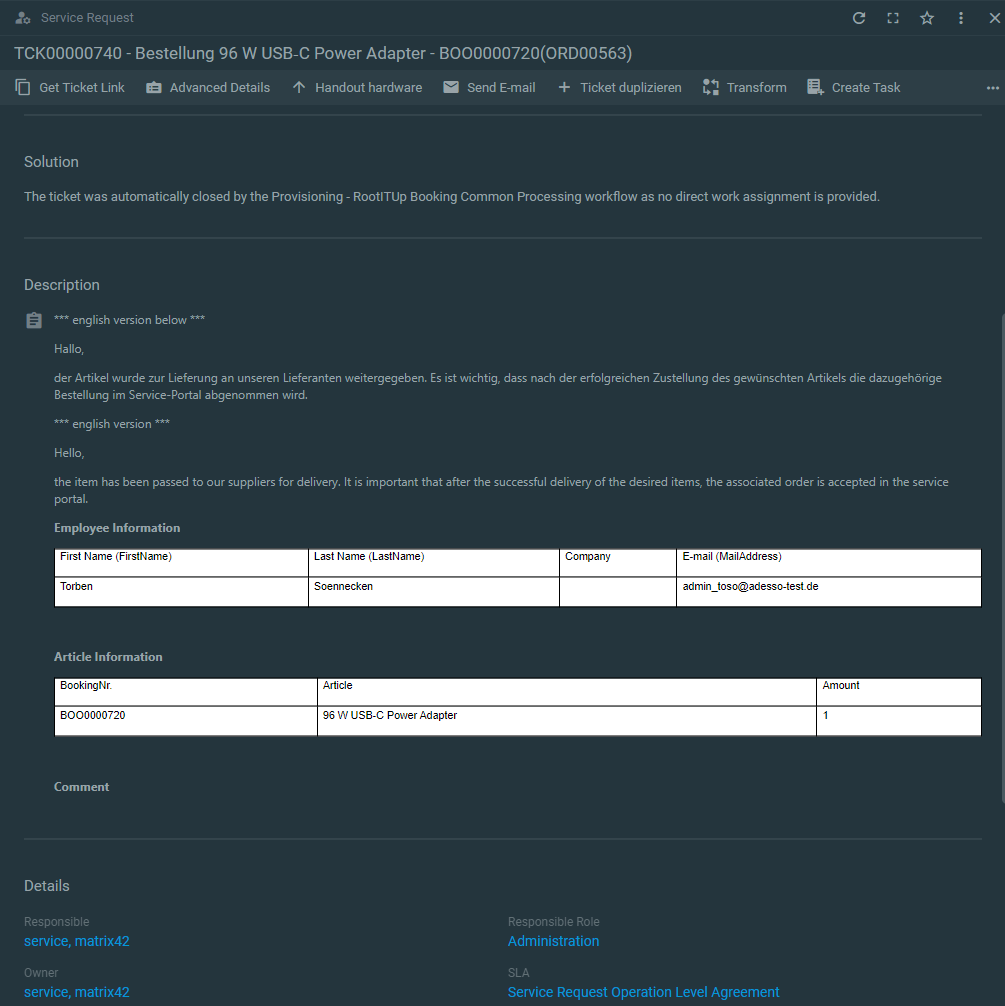

    3. A ticket containing all necessary details is created under a "PreApproval" category and is immediately closed. This category's settings can be customized.

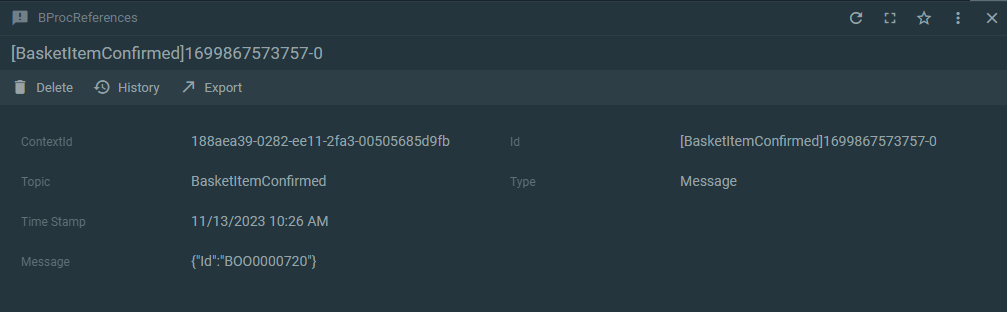

    4. Each item (booking) in the order is confirmed using its ticket number as reference for the order management service. This step is complete when a "BasketItemConfirmed" event is noted.
      image (3).png
  4. Finalizing the Order:

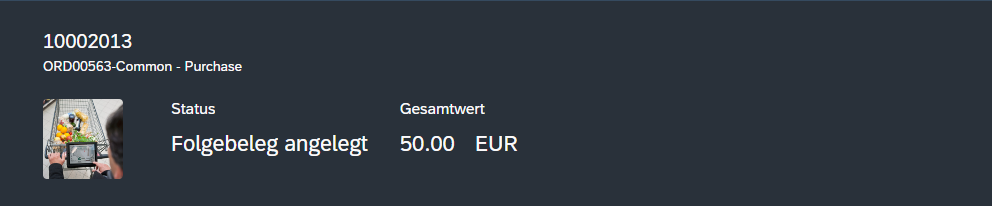

    1. After all items in the basket are confirmed (or deregistered), a purchase request is made in the S4Hana system.
    2. The IT Procurement team approves the purchase requisition.

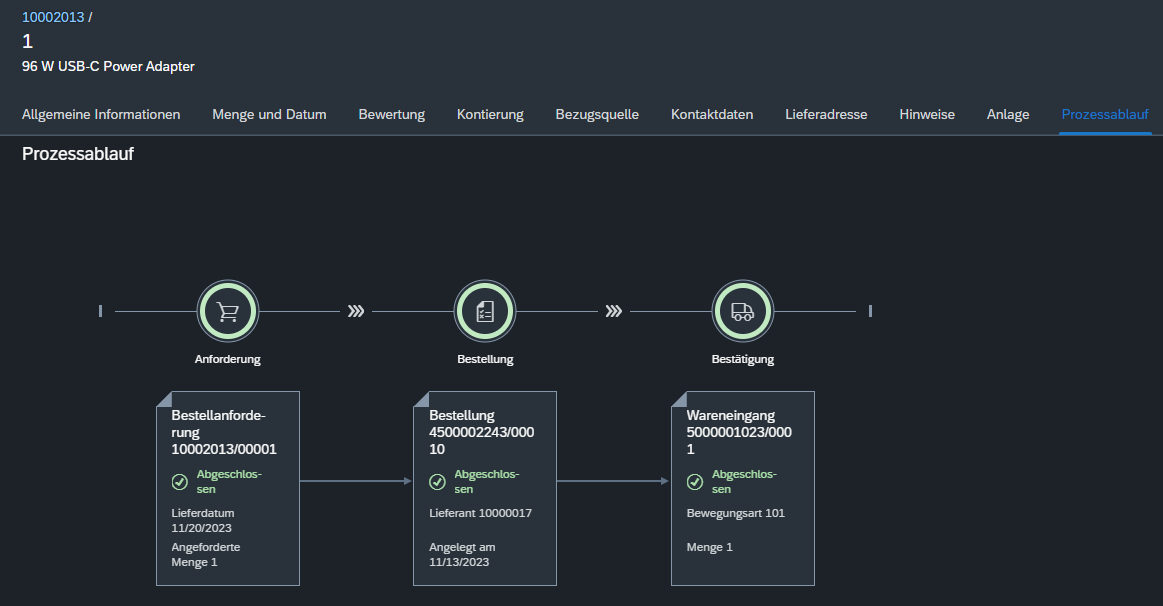

    3. The purchase request is automatically turned into a purchase order by a purchasing job in SAP S4Hana.
    4. The initial ticket, which was in the PreApproval category, is now moved to the "Purchase" category.
  5. Completion and Receipt:
    1. The processing of the booking items is considered complete.
    2. Finally, accepting the processed bookings in the system triggers a confirmation of goods received in S4Hana.

Updated on 05 Jul 2024
